Amate Audio S46 Active column array

SKU: AM-S46

A new dimension in high-fidelity signal reproduction. The S46 retains the exceptional low-frequency response of its previous model and elevates the experience through technological innovations: an intuitive touchscreen, a new asymmetrical horn design, and an advanced driver, delivering superior intelligibility and musicality. Perfect for unparalleled coverage in auditoriums and entertainment spaces of any size.

Amplifier program power600 W (LF) + 100 W (HF) Class D bi-amplified
Input sensitivity8 dBu – 1.94 V
Input impedance50 KΩ Balanced
MainsUniversal switch mode Power Supply 85-265 V / 45-65 Hz
Average current draw1.7 A (Heavy duty musical program)
SPL (1m)125 dB continuous, 128 dB peak
Built-in DSP64-bit processing unit. Includes factory presets.
PresetsFLAT / SPEECH / HPF90
AD/DA converters24 bit – 48 kHz
Standby mode consumption3.7 W @230VAC
Adjustable delay line294 ms / 100 m
Frequency response (-10 dB)50 Hz – 19 kHz
LF – MF4x 6″ neodymium woofers with carbon fiber cone (1.5″ voice coil)
HF1.5” polymer diaphragm neodymium magnet ring driver
Directivity (-6dB)50º to 100º (H) x 55º (V)
Weight20.9 kg
Dimensions (HxWxD)1056 x 250 x 274 mm
FinishMultilayer baltic birch plywood with high resistant black Polyurea® coating
Grille1.5mm powder coated steel with black acoustic mesh

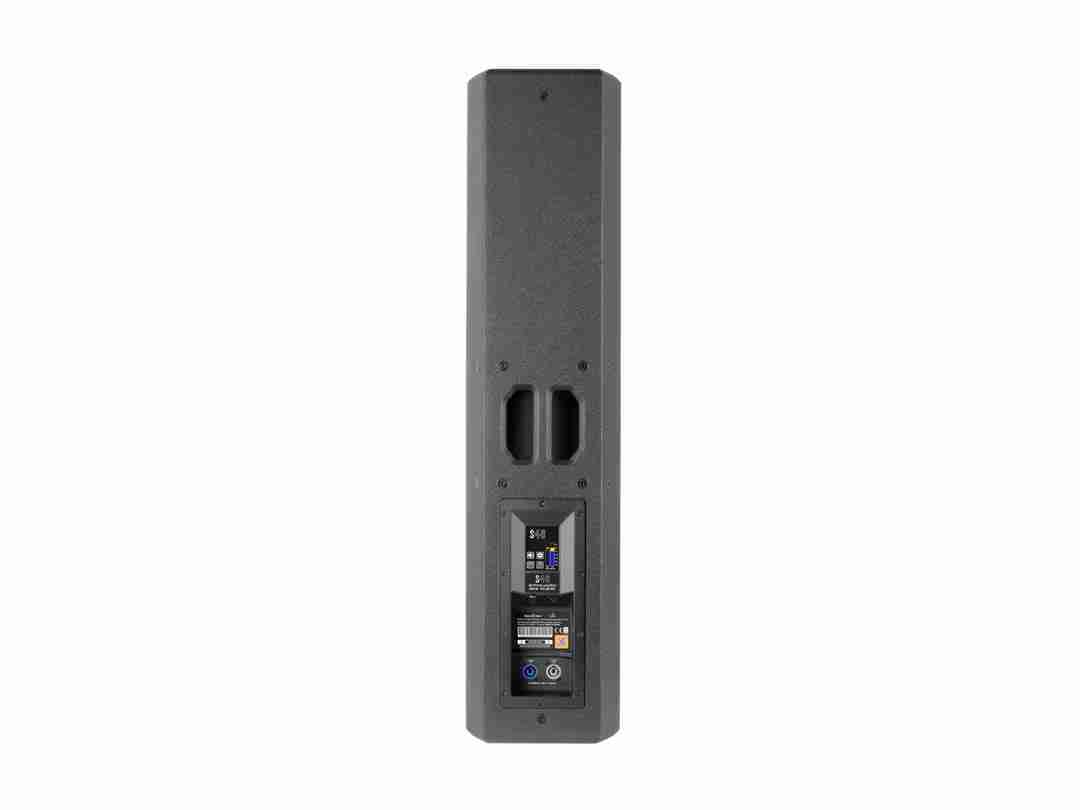

Connectors1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link
