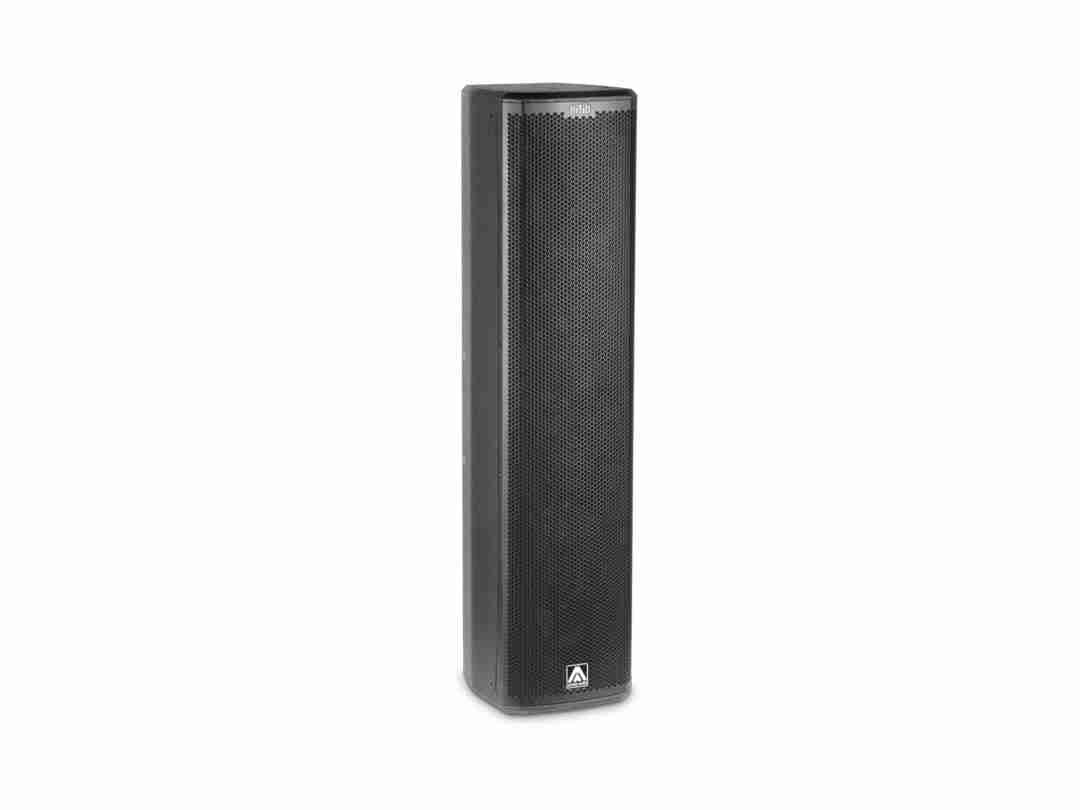

Amate Audio S46P Passive Column Array


A new dimension in high-fidelity signal reproduction. The S46 retains the exceptional low-frequency response of its previous model and elevates the experience through technological innovations: an intuitive touchscreen, a new asymmetrical horn design, and an advanced driver, delivering superior intelligibility and musicality. Perfect for unparalleled coverage in auditoriums and entertainment spaces of any size.

Program power600 W
SPL (1W/1m)97 dB
Maximum SPL (continuous/1m)125 dB
Frequency response (-10 dB)50 Hz – 20 kHz

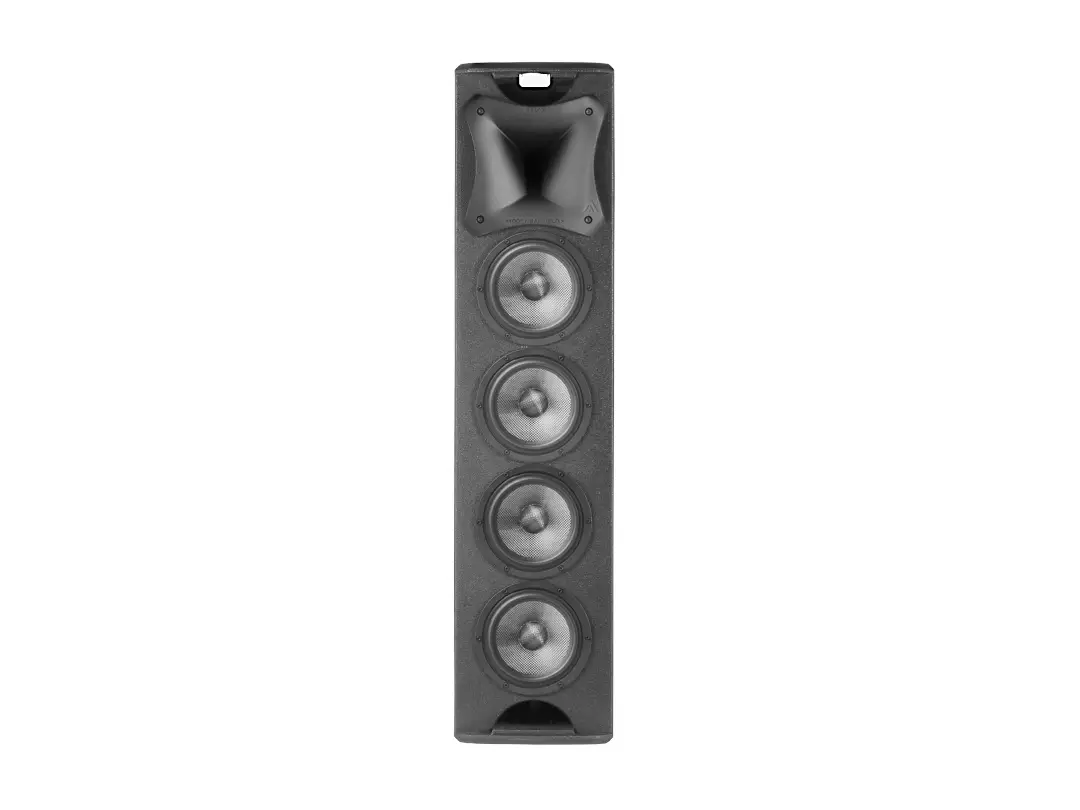

LF4×6” neodymium woofers with carbon fiber cone (1.5” voice coil)
HF1.5” polymer diaphragm neodymium magnet ring driver
Directivity (-6dB)50º to 100º (H) x 55º (V)
Dimensions (HxWxD)1056 x 250 x 274 mm
Weight19,7 kg
FinishMultilayer birch plywood with high resistant black Polyurea® coating
Grille1.5mm powder coated steel with black acoustic mesh
Connectors1x Speakon NL4MP input / 1x Speakon NL4MP link
