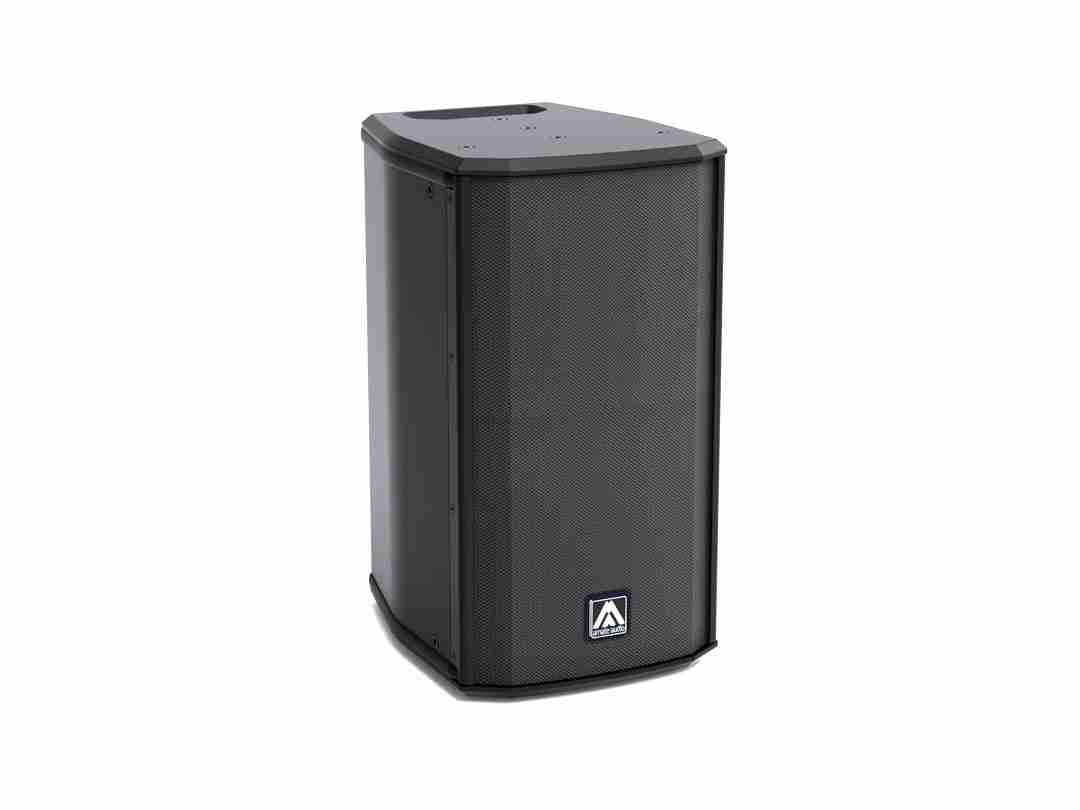

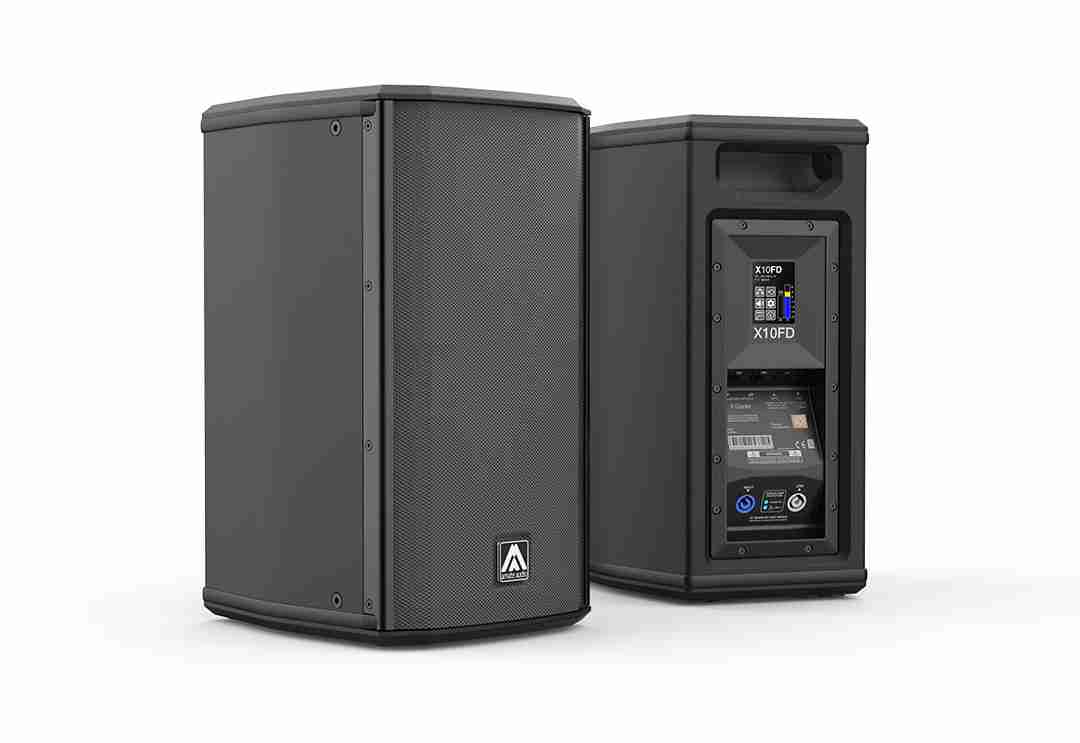

Amate Audio X10FD
SKU: AM-X10FD
- Low in stock
The X10FD is the most compact point source system in the Xcellence series: a refined and powerful loudspeaker that shares the same engineering DNA as the larger Xcellence models. Its optimized design ensures precise tonal balance and clarity, making the X10FD an exceptional choice for portable PA or as a high-definition complement within the Xcellence range.
| Amplifier program power | 800 W (LF) + 200 W (HF) Class D Bi-amplified |
| Input sensitivity | 8 dBu – 1.94 V |
| Input impedance | 20 KΩ Balanced |
| Mains | Universal switch mode Power Supply 85-265 V / 45-65 Hz |
| Average current draw | 2,2 A (Heavy duty musical program) |
| SPL (1m) | 128 dB continuous , 131 dB peak |
| Built-in DSP | 64- bit processing unit. Includes factory presets |
| AD/DA converters | 24 bit – 48 kHz – SNR > 112dB |
| Presets | FR_FLAT, FR_LONGTHROW, HPF90_FLAT, HPF90_LONGTHROW + 25 configurable user memories |
| Frequency response (-10 dB) | 53 Hz – 19 kHz |
| LF | 10″ neodymium woofer (3″ voice coil) |
| HF | 1.7″ HF polymer diaphragm, neodymium magnet compression driver |
| Directivity (HxV) | 50º to 100º (H) × 55º(V) |
| Dimensions (HxWxD) | 554 × 303 × 370 mm |
| Weight | 19 kg |
| Finish | Multilayer baltic birch plywood with high resistant black Polyurea® coating and protective rubber profiles |
| Grille | 1.5 mm steel with grey micro-foam cloth |
| Connectors | 1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link / 1x EtherCon® RJ45 input / 1x EtherCon® RJ45 link |
