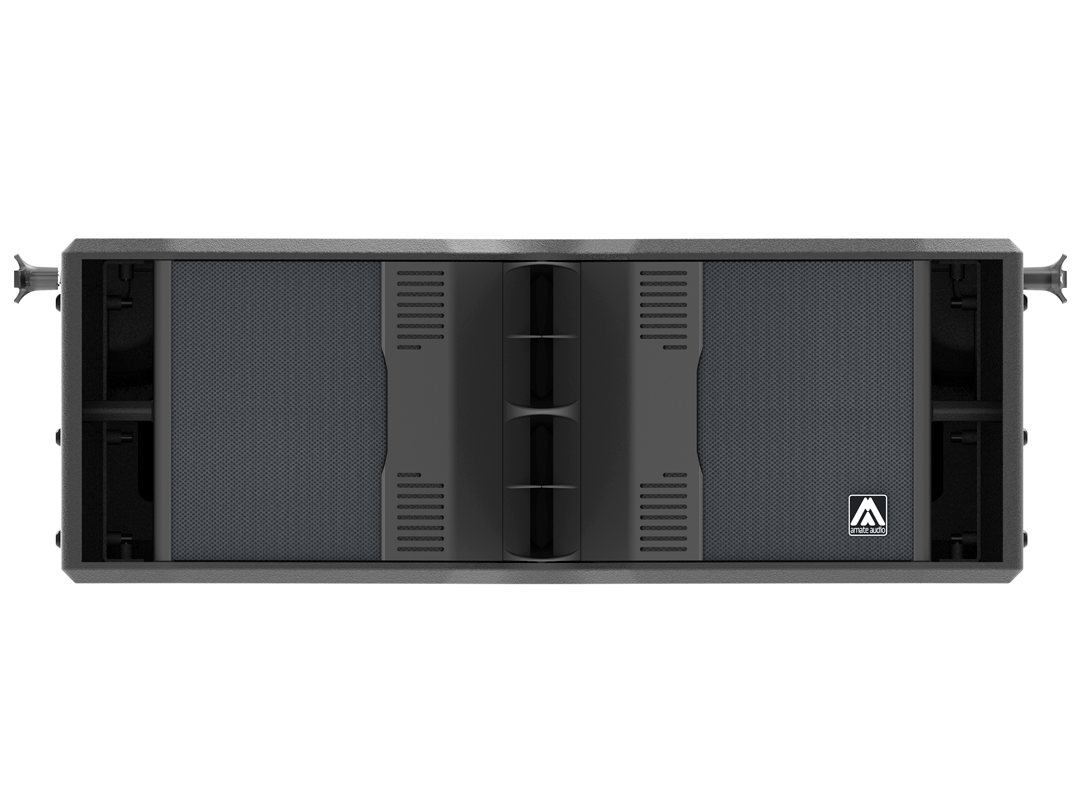

Amate Audio XA209 active line array
SKU: AM-XA209
- Out of stock
A new milestone in compact line array design, the XA209 is engineered with the latest acoustic technologies
from the XCELLENCE series, delivering signature clarity, definition and control in a streamlined enclosure.
Precision-crafted for impactful sound in any environment.
| Amplifier program power | 2500 W (LF) + 500 W (HF) – Class D Bi-amplified |
| Analog input | Nominal: +8 dBu. Max: +20dBu. |
| Input impedance | 20 kΩ Balanced |
| Mains | Universal Switch Mode Power Supply 85-265 V / 45-65 Hz |
| Average current draw | 3.3 A (Heavy duty musical program) |
| SPL (1m) | 135 dB musical program, 138 dB peak |
| Built-in DSP | 64-bit processing unit. Includes factory presets |
| AD/DA converters | 24 bit – 48 kHz |
| Presets | FR FLAT, FR NEARFIELD, FR LONGTHROW, HPF90 FLAT, HPF90 NEARFIELD, HPF90 LONGTHROW |
| Frequency response (-10 dB) | 70 Hz – 19 kHz |
| LF-MF | 2x 8” neodymium woofers (2” voice coil) |
| HF | 2 × 1.7” HT polymer diaphragm, neodymium magnet compression drivers |
| Directivity (-6dB) | 95º (H) x 10º (V) |
| Dimensions (HxWxD) | 245 × 680 × 550 mm (excluding pins) |
| Weight | 26,7 kg |
| Finish | Multilayer baltic birch plywood with high resistant black Polyurea® coating |
| Grille | 1.5 mm powder coated steel with grey micro-foam cloth |
| Rigging | Stainless-steel black painted integrated rigging bars |
| Connectors | 1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link / 1 x EtherCon® RJ45 input / 1 x EtherCon® RJ45 link |
