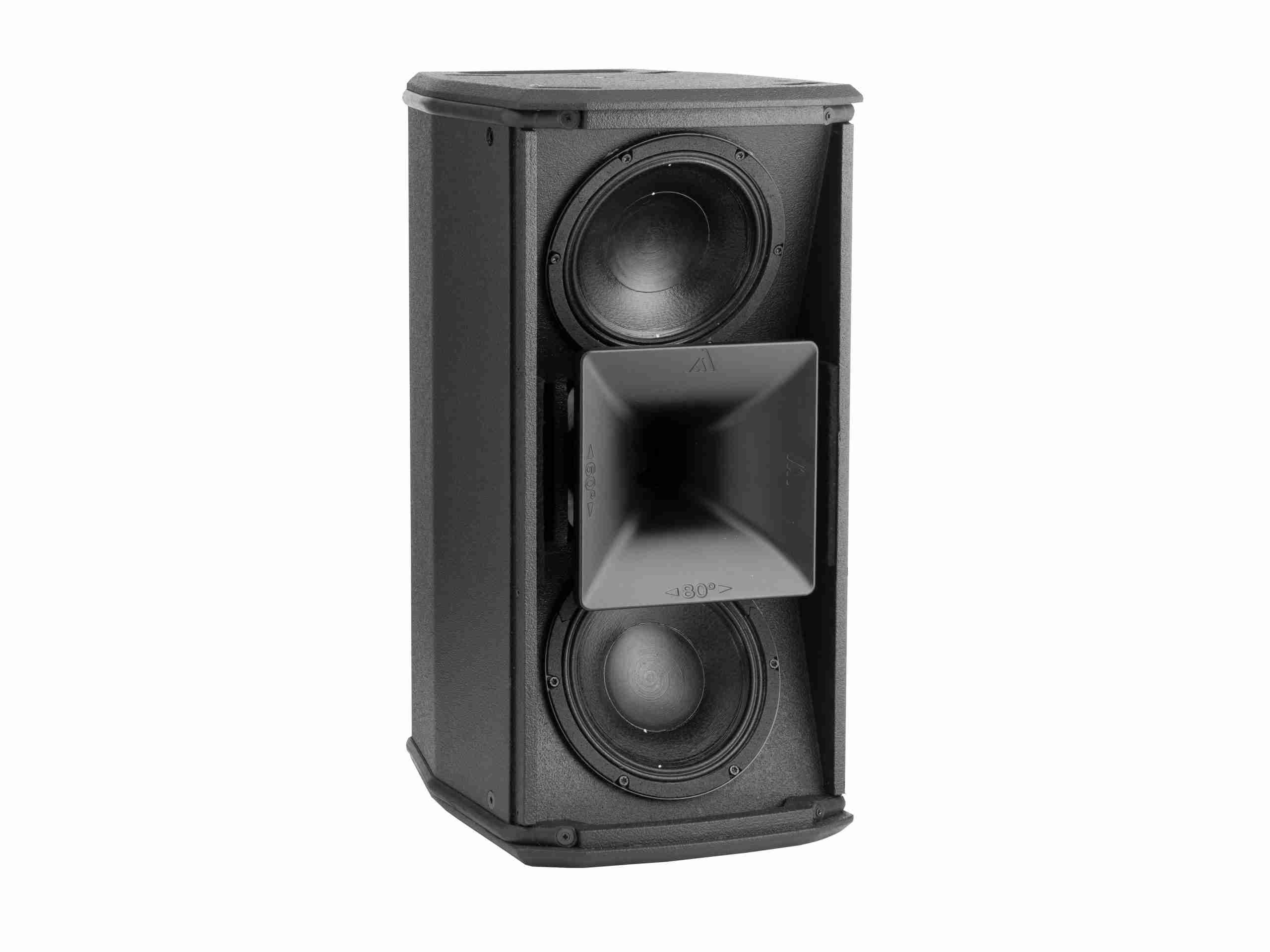

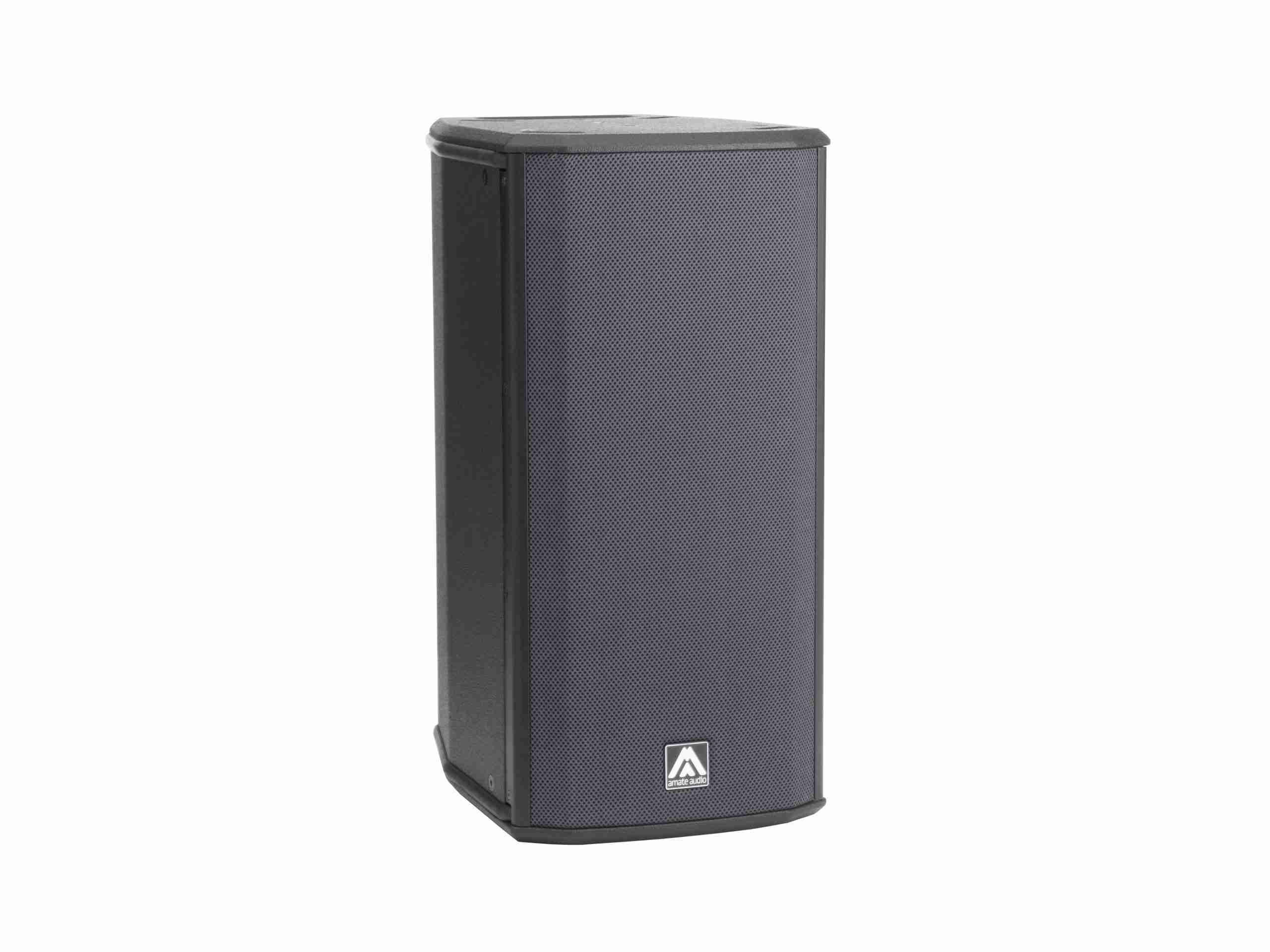

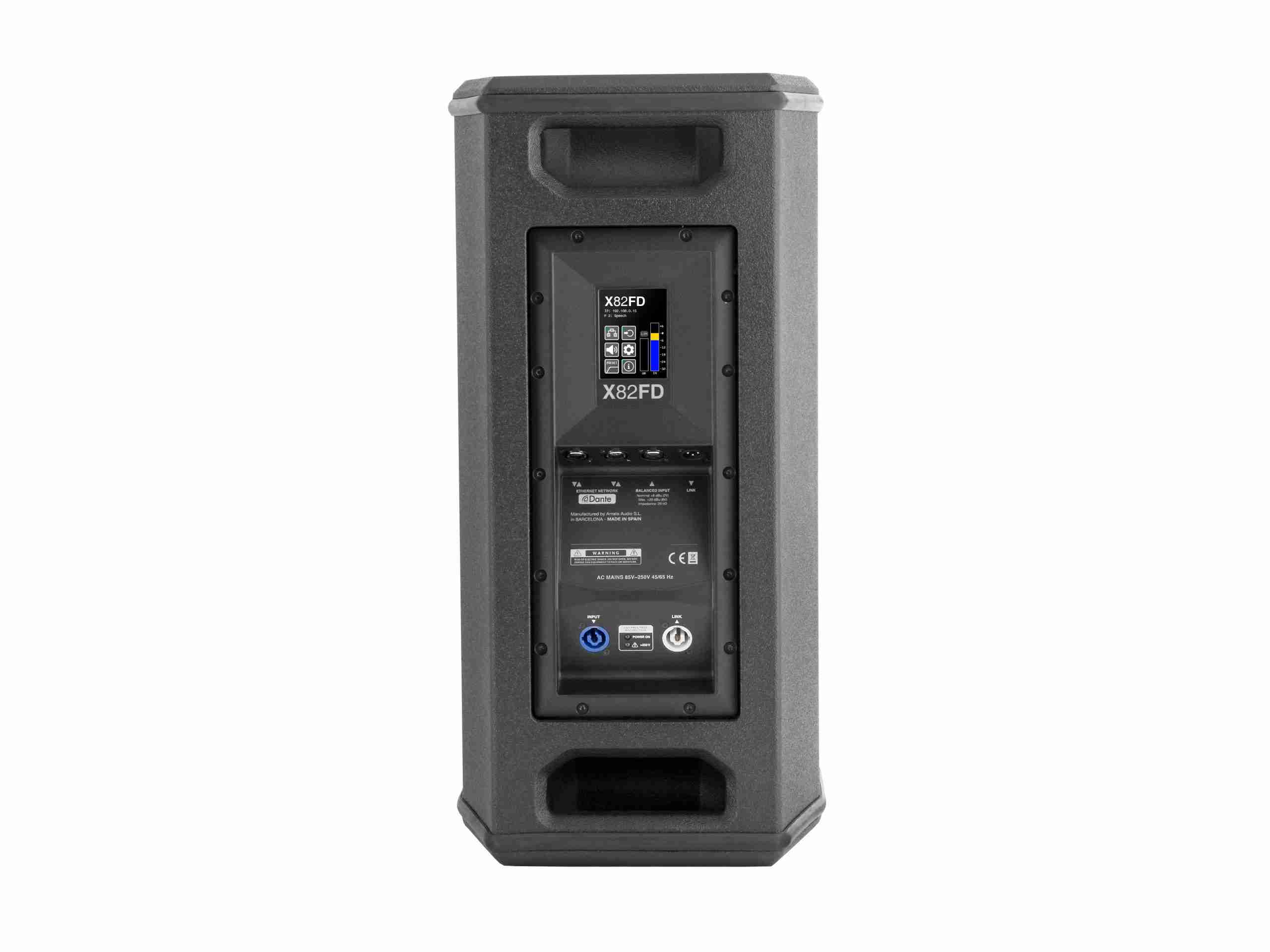

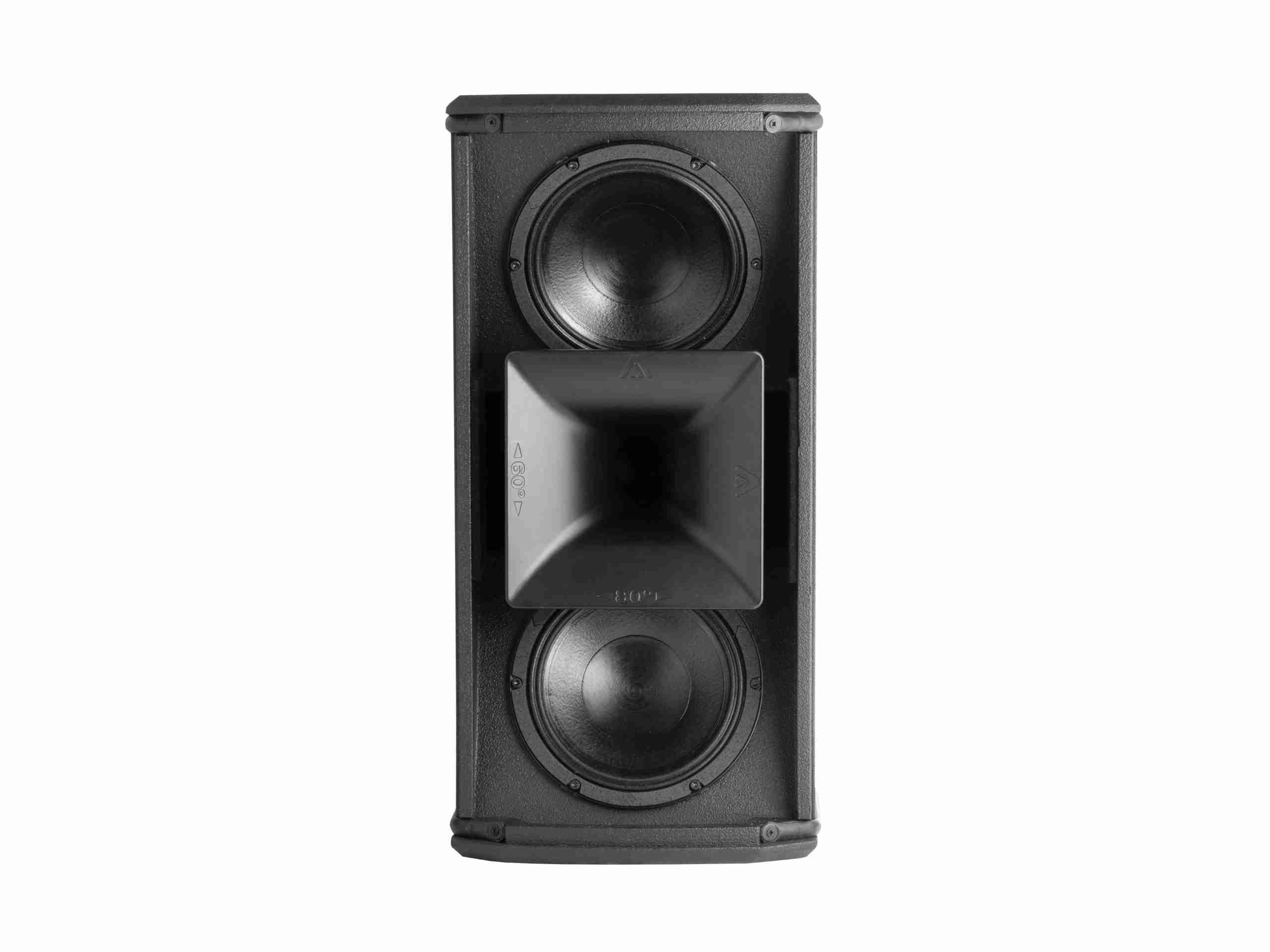

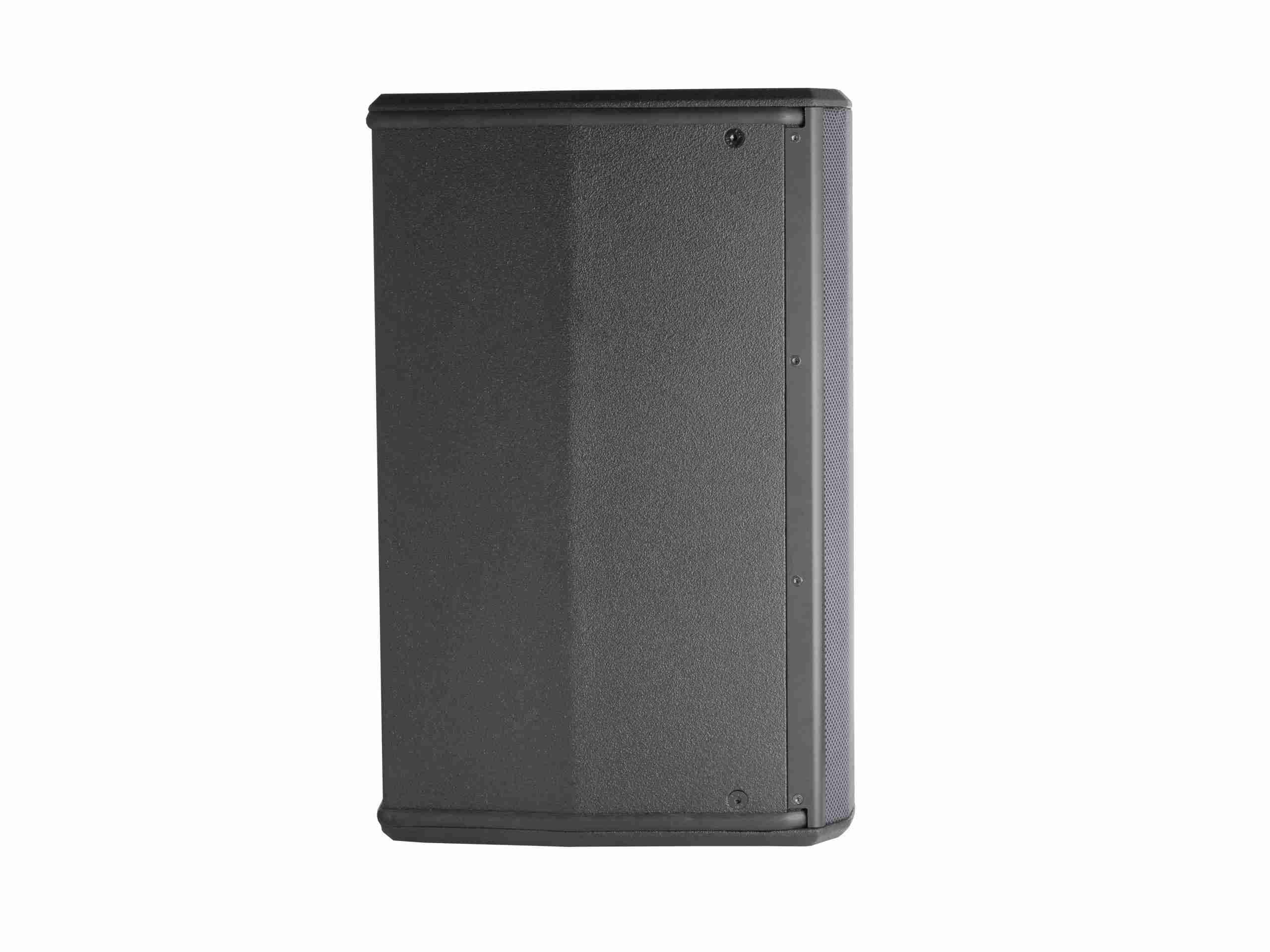

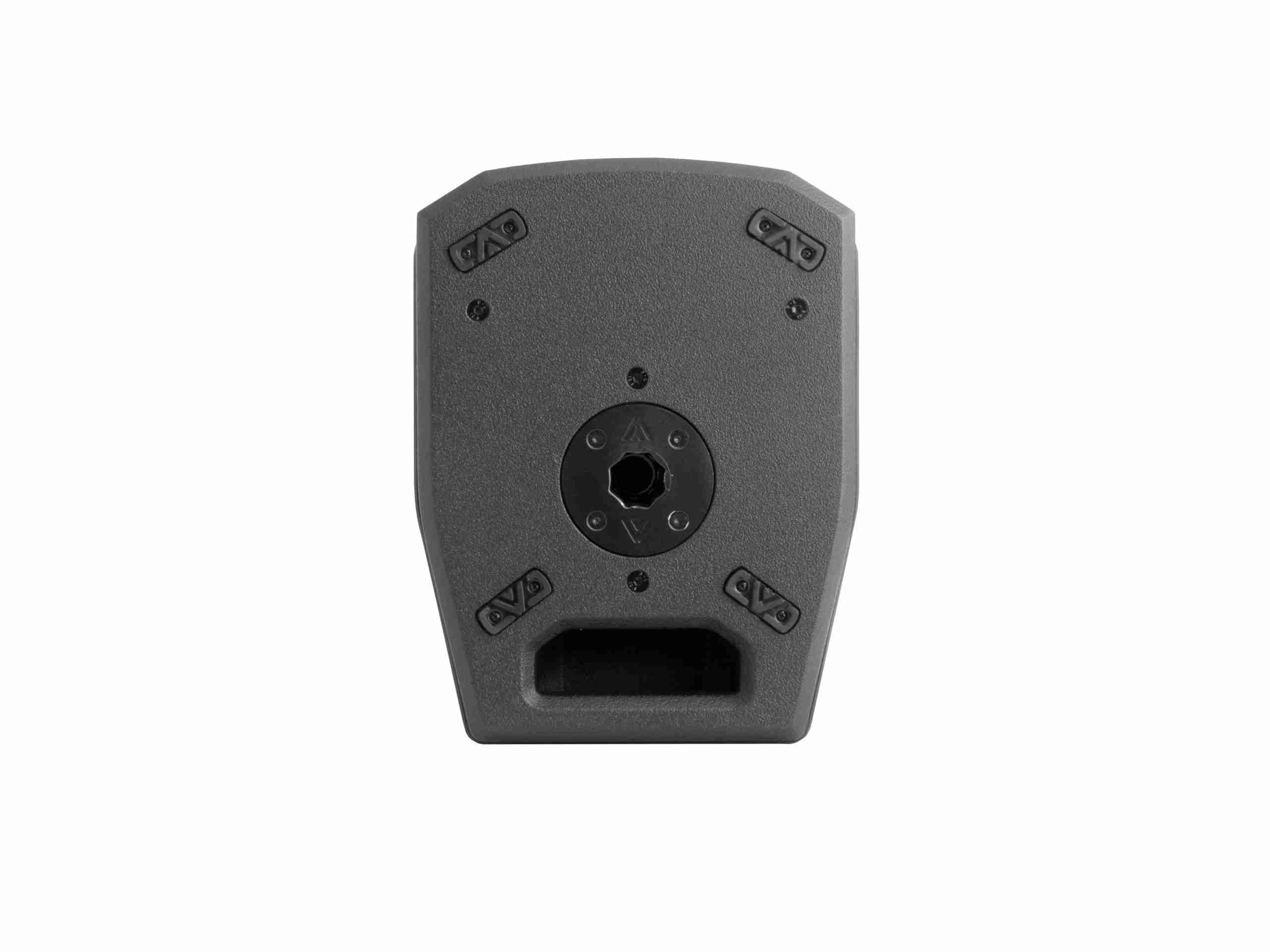

Amate Audio X82FD
SKU: AM-X82FD
- Low in stock
The X82FD constitutes a significant improvement in high-performance point source design, featuring a lightweight
and compact 8″ format based on the successful 2×10″ concept of the best-selling X102FD. This model is engineered to
deliver outstanding acoustic power with exceptional vocal articulation. In its reduced dimensions, the X82FD achieves
remarkable maximum SPL levels. The perfect choice for medium-sized applications requiring high sound quality and
efficient space utilization, setting new standards in portability and acoustic performance.
| Amplifier program power | 2500 W (LF) + 500 W (HF) Class D Bi-amplified |
| Input sensitivity | 8 dBu – 1.94 V |
| Input impedance | 20 KΩ Balanced |
| Mains | Universal switch mode Power Supply 85-265 V / 45-65 Hz |
| Average current draw | 2.9A (Heavy duty musical program) |
| SPL (1m) | 134 dB continuous , 137 dB peak |
| Built-in DSP | 64- bit processing unit. Includes factory presets |
| AD/DA converters | 24 bit – 48 kHz – SNR > 112dB |
| Presets | FR_FLAT, FR_LONGTHROW, HPF90_FLAT, HPF90_LONGTHROW + 25 configurable user memories |
| Frequency response (-10 dB) | 68 Hz – 19 kHz |
| LF | 2 x 8″ neodymium woofers (2″ long excursion dual voice coil) |
| HF | 3” titanium diaphragm, neodymium magnet compression driver |
| Directivity (HxV) | 80º x 60º |
| Dimensions (HxWxD) | 624 x 303 x 402 mm |
| Weight | 23 kg |
| Finish | Multilayer baltic birch plywood with high resistant black Polyurea® coating and protective rubber profiles |
| Grille | 1.5 mm steel with grey micro-foam cloth |
| Connectors | 1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link / 1x EtherCon® RJ45 input / 1x EtherCon® RJ45 link |
